Price:
(as of – Details)

Product Description

Range Selection
Manual and Auto Manual Auto Auto Auto Manual and Auto

AC/DC Voltage

✓

✓

✓

✓

✓

✓

AC/DC Current

✓
Only DC Current
✓

✓

✓

✓

Resistance/Continuity

✓

✓

✓

✓

✓

✓

Capacitance/Frequency

✓
X
✓
Only Capacitance
✓

✓

Temperature

✓
X
✓
X X
✓

True RMS

✓
X 6000 4000 2000
✓

NCV Detection
X X
✓

✓
X
✓

Live Wire Test
X X
✓

✓

✓

✓

“For All of Life’s Adventures” is more than a slogan for us; it’s a lifestyle and core philosophy. AstroAI supports the adventurer within and we encourage our customers to take risks and push the envelope.

We don’t choose products based on market interests or fancy analytics. We develop tools and products for ourselves and our customers based on real-world needs and expectations.

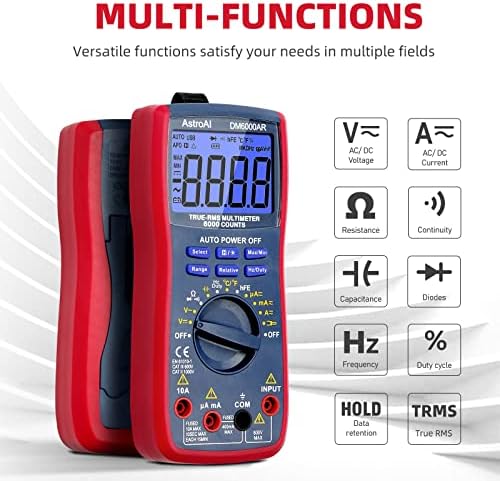

AstroAI 6000 Counts True RMS Digital Multimeter

The AstroAI True RMS Multimeter is designed to be safely and accurately used by professionals in a commercial setting or weekend DIYer’s that need a little more power utility from their standard digital multimeter. It’s easy and safe to operate with advanced features built for measuring seemingly everything. Run tests on diodes and transistors while being able to measure voltage, current, resistance, continuity, capacitance, and frequency, all on one device.

Trouble Shooting with Maximum Safety

Troubleshoot Electrical Problems

AstroAI multimeter is professionally designed to troubleshoot electrical problems or just for electronics training.

Continuity Test

Connect the test leads to two points on the circuit being tested.

Intelligent Anti-burn and Double Protection

Built-in F400mA/600V and F10A/600V explosion-proof ceramic fuse tubes; Double Protection, more secure and reliable; The fuses can protect the multimeter effectively; Overload protection on all ranges.

Backlit LCD and Data Hold

Large digital display with backlit LCD for visibility in dimly light areas; It is often easier to use the data hold function to freeze the data being displayed on the digital display.

Multi-Function Socket

Use the multi-function socket to measure both Capacitors and Transistors.

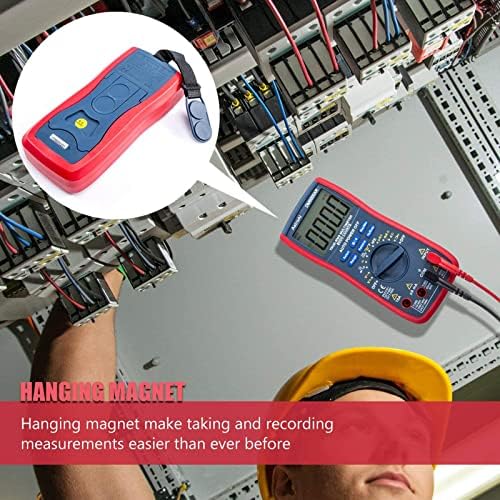

Hanging Magnet and Kickstand

Hanging magnet and kickstand make taking and recording measurements easier than ever before.

Temperature Test

Carefully touch the end of the thermocouple to the object being measured; Wait for the temperature reading to settle, then record the result from the LCD display.

The AstroAI True RMS Multimeter is designed to be safely and accurately used by professionals in a commercial setting or weekend DIYer’s that need a little more power utility from their standard digital multimeter. It’s easy and safe to operate with advanced features built for measuring seemingly everything. Run tests on diodes and transistors while being able to measure voltage, current, resistance, continuity, capacitance, and frequency, all on one device. This multimeter is designed to be used in commercial settings, but can also be brought home to use with automotive or household electrical problems.

Specifications

Digital Display: 3 5⁄6 , 5999

Sampling Speed: 2 times per second

Range Selection: Auto or Manual

Polarity Indication

Overload Indication

Low Battery Indication

Power: 1 x 9V 6F22 Battery Included

Temperature Test: Yes

Transistor Test: Yes

Diode Test: Yes

Continuity Test: Yes

External Current Test: Yes

Capacitance: Yes

Frequency: Yes

Safety/Compliances: EN61010-1 CAT III 600V, CATII 1000V

DC Voltage: 600mV/6V/60V/600V ±(0.8%+3), 1000V (1%+5)

AC Voltage: 600mV ±(1.2%+8); 6V/60V/600V ±(1.2%+6); 750V ±(1.2%+8)

Temperature: -40°C~1370°C; -40°F~2000°F (1-5%+4 depending on temp)

DC Current: 600μA/6000μA/60mA/600mA ±(0.8%+5); 6A/10A ±(1.5%+3)

Transistor hFE: PNP & NPN (lb≈2μA; Vce≈1V)

Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ ±(1.5%+3); 60MΩ ±(1.5%+5)

Capacitance: 60nF/600nF/6μF/60μF/600μF/60mF

Frequency: 0~60MHz ±(1%+5)

Package Includes

1 x AstroAI DM6000AR True RMS Digital Multimeter

1 x Test Leads (Pair)

1 x K-Type Thermocouple

1 x Multi-Function Socket 1 x User Manual

Thoughtful Design – Support Data Hold, Large LCD Backlit Screen, Auto Shut-off and Hanging Magnet, and Kickstand make the process of measurements easier. Professional level is reflected in some features include Auto-Ranging capability, and True RMS for measuring both AC Current and Voltage
Suitable For Many Occasions – This Multimeter is a golden partner to help to troubleshoot a variety of automotive and household electrical problems safely and accurately.
Ensure Safety – Double ceramic fuse is anti-burn and protects from overloading，and it will be more secure and reliable； F400mA/600V and F10A/600V explosion-proof ceramic fuse tubes can protect the multimeter effectively
Additional Tips – Combined with Amazon’s superior delivery, we provide lifetime technical support. ( Note: Please take off the cap before using the test leads)
